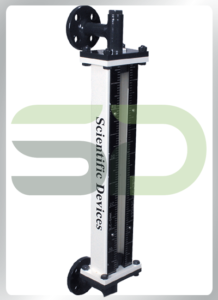

Tubular Level Gauge for visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication. This is a very simple instrument. It is flange mounted to the tank.
As the liquid level rises in the tank, the liquid also rises inside the glass tube and one can see the liquid level in the tank. In this model the glass tube is enclosed in an enclosure which also carries a graduated scale. The liquid level in the gauge can be conveniently read against this scale.
Specification
| Application | : | Liquids |
| Wetted Part | : | MS/CS/SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/ PTFE Lined Other Materials on request |
| Glass Protecting Channel | : | MS/SS304/SS316/PP/ FRP/Aluminimum |
| Design Temperature | : | Upto 120°c |
| Design Pressure | : | Upto 7 Kg/cm² and full vacuum |
| C/C Distance | Upto 3000 mm | |
| Connection | : | Flanged to ASA/BS/DIN/ Socket Weld/Butt Weld |
Tubular Level Indicator with 2 NOs
Isolation Valve and 1 nos Drain Valve
Product Code:
TLG4400-2IV-1DV

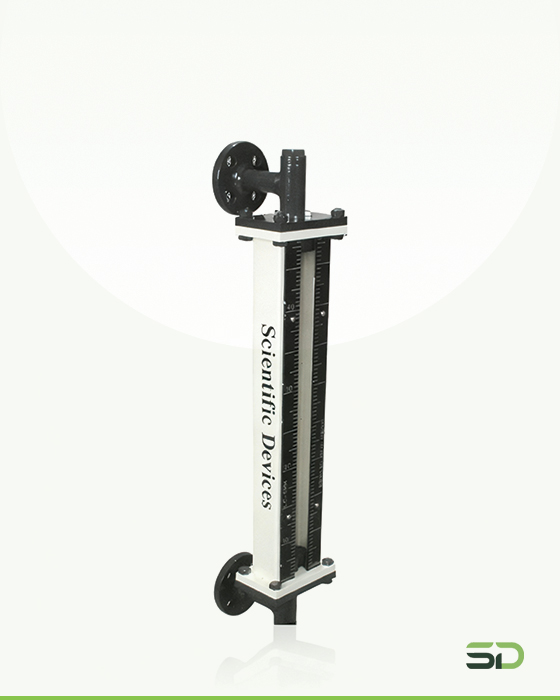

Tubular Level Indicator without
Isolation Valve and With Drain Valve
Product Code:
TLG 4400-DV

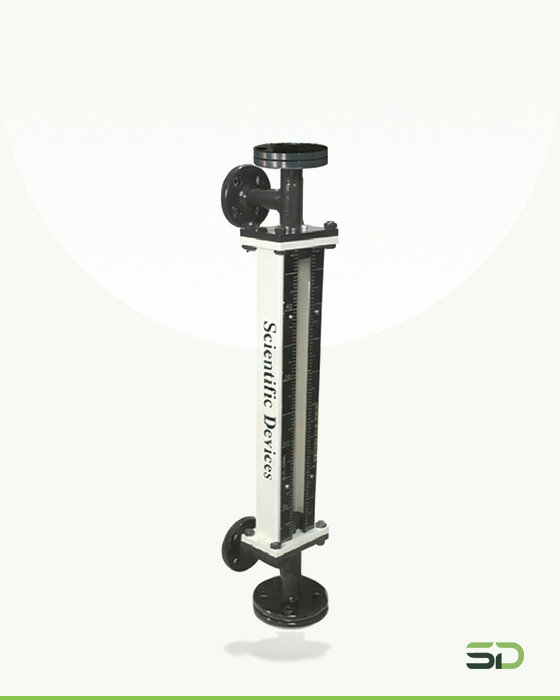

Tubular Level Indicator
with Drain Flange
Product Code:
TLG4400-VD

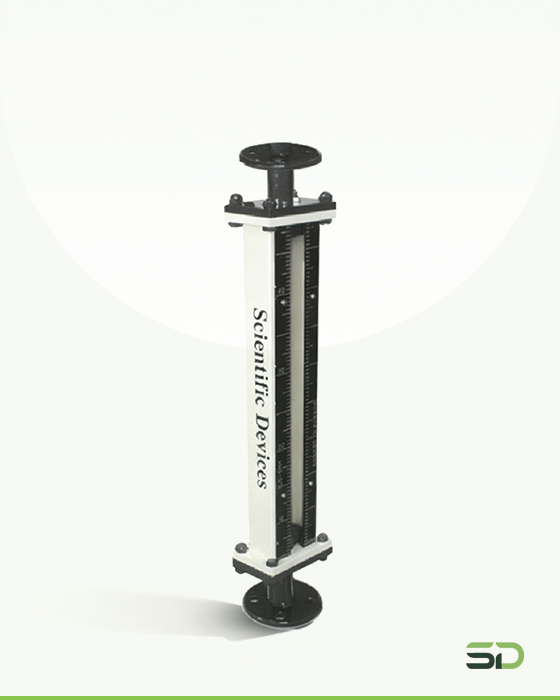

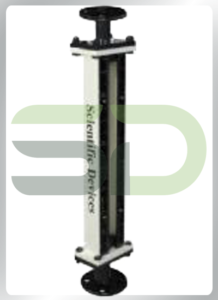

Tubular Level Indicator
with vertical connection
Product Code:
TLG4400-VF

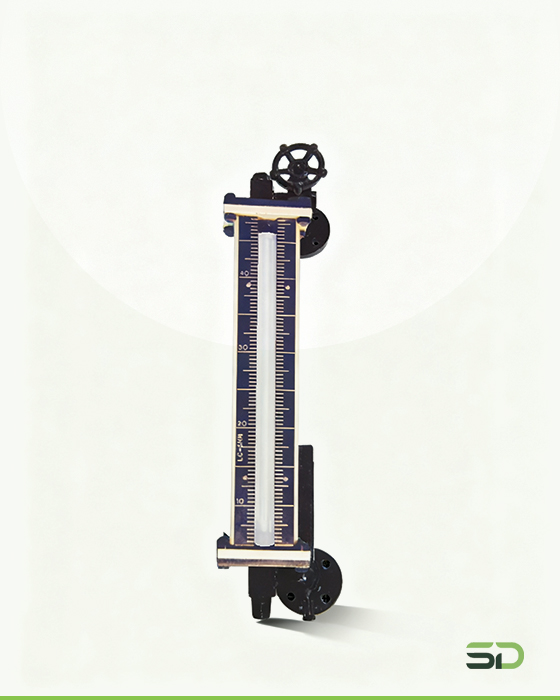

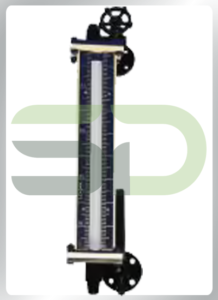

Tubular Level Indicator with
spring loaded push valve
Product Code:
TLG4400-SPRDV

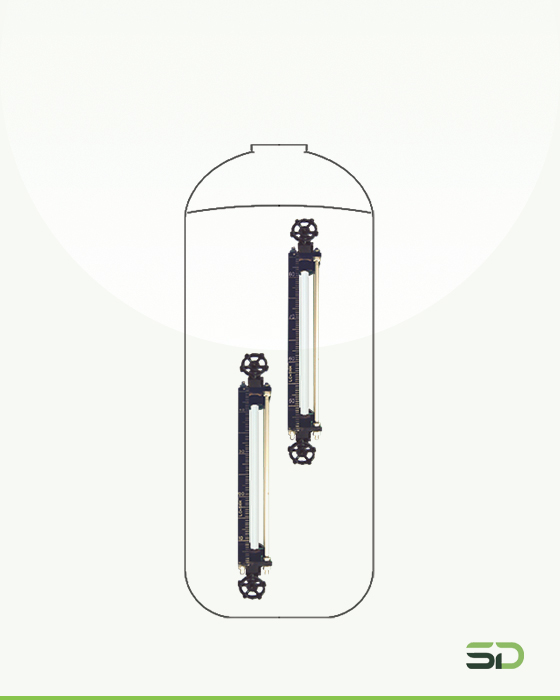

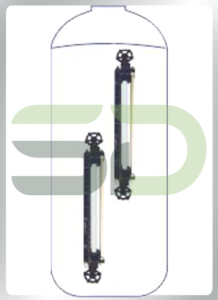

Tubular Level Indicator with
Overlapping Mounting Arrangement
Product Code:
TLG4400-VFFA

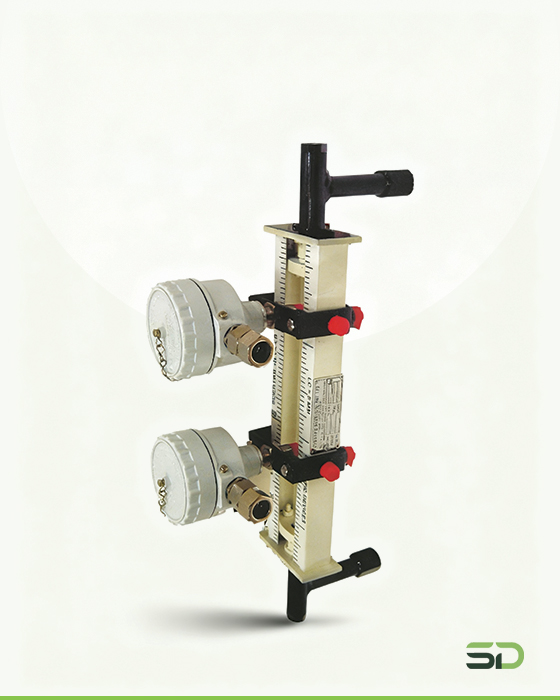

Tubular Level Indicator with
High & Low Level Switch
Product Code:
TLG4400-HLS

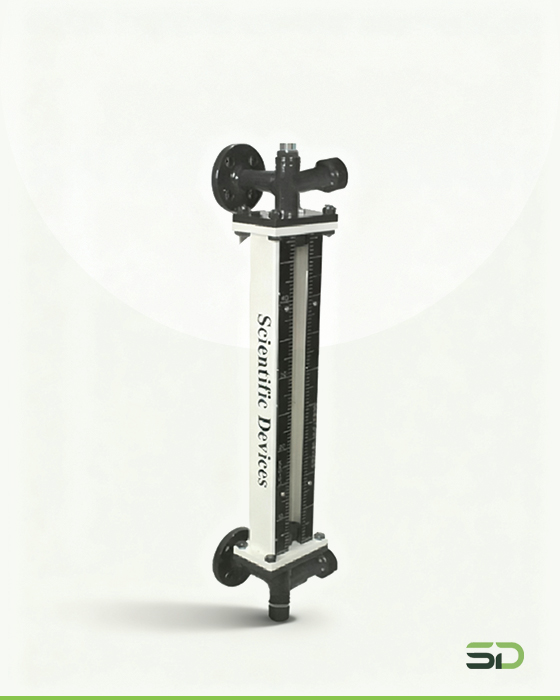

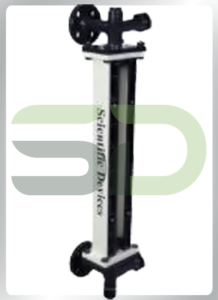

Tubular Level Indicator
with Steam Jacket
Product Code:
TLG4400-SJ
