Simple magnetic principle used to get unique, absolutely safe and most reliable level indicator for dangerous liquids even under high pressures
As the liquid level rises in the tank, the float is lifted up due to buoyancy. The float moves inside a SS float chamber. External to this float chamber is a glass tube(MLI 2200)/indicating PVC magnetic ball assembly (RBMLI 2200) which carries the magnetic follower.
Due to magnetic attraction, the magnet on the float and the magnetic follower are coupled and move in union. So as the float moves along with the liquid, the follower capsule also moves inside the glass tube(MLI 2200) and PVC magnetic ball changes its colour (RBMLI 2200), and the position of the follower capsule/magnetic ball can be read against the scale.
Specification
| Liquids | : | Acids/Alkalies/Solvents/Oils/Lubricants/Liquid Gases |
| Viscosity | : | Upto 250 cp |
| Design Pressure | : | Up to 15 Kg/cm² |
| Material of wetted Parts | : | SS304/SS304L/SS316/SS316L PTFE Lined SS/PVC/PP |
| Density / Sp. gravity | : | Minimum 0.6 |
| Design Temperature | : | Up to 230°c |
| C/C Distance | : | Up to 5000 mm |
| Connection | : | Flanged to ASA/BS/DIN/Triclover |
Side Mounted Magnetic Level Indicator with 4 20 mA output Transmitter
Product Code:
MLI 2200-TX Series

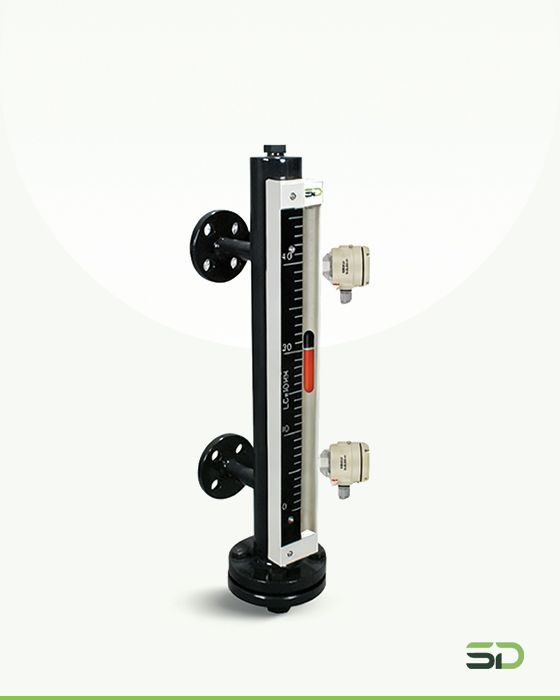

Side Mounted Magnetic Level Indicator (Capsule Type) With High & Low Level Non Latching Switch
Product Code:
RBMLI 2200LHNL Series
Side Mounted Magnetic Level Indicator (Capsule Type) With High & Low Level Latching Switch
Product Code:
MLI2200LHL
Side Mounted Magnetic Level Indicator (Rotoball Type) with 4-20 mA output Transmitter
Product Code:
RBML12200-TX
Side Mounted Magnetic Level Indicator (Rotoball Type) With High & Low Level Non Latching Switch
Product Code:
RBML12200LHNL

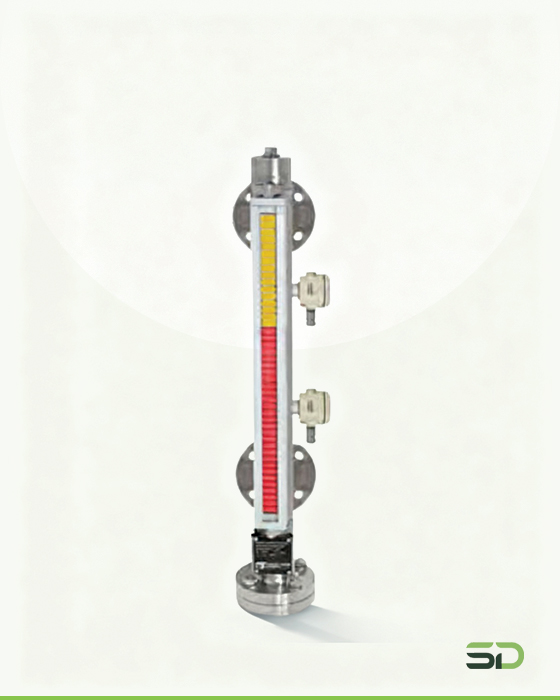

Side Mounted Magnetic Level Indicator (Rotoball Type) With High & Low Level Latching Switch
Product Code:
RBML12200LHL
